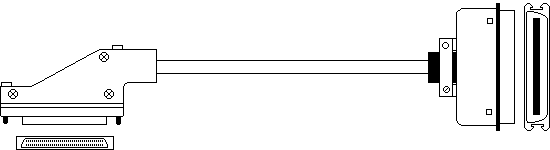

68 way R/A HD Male to Centronics Male



Specification:
Wide to Narrow SCSI Cable
68 way High Density Male Right-angled with Jack Screws to
Centronics Male
Cable - Madison 25 Pair Fast SCSI
Part Number Description Price £
IPSRC50-01MHD68M-RA to C50M SCSI Cable 1m65.00
IPSRC50-02MHD68M-RA to C50M SCSI Cable 2m70.00
IPSRC50-03MHD68M-RA to C50M SCSI Cable 3m75.00
IPSRC50-05MHD68M-RA to C50M SCSI Cable 5m85.00
IPSRC50-10MHD68M-RA to C50M SCSI Cable 10m110.00
