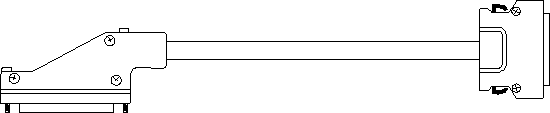

68 way R/A HD Male to 50 way HD Male



Specification:
Wide to Narrow SCSI Cable
68 way High Density Male Right-angled with Jack Screws to
50 way High Density Male with side latches.
Cable - Madison 25 Pair Fast SCSI
Part Number Description Price £
IPSR50HD-01MHD68M-RA to HD50M SCSI Cable 1m65.00
IPSR50HD-02MHD68M-RA to HD50M SCSI Cable 2m70.00
IPSR50HD-03MHD68M-RA to HD50M SCSI Cable 3m75.00
IPSR50HD-05MHD68M-RA to HD50M SCSI Cable 5m85.00
IPSR50HD-10MHD68M-RA to HD50M SCSI Cable 10m110.00
