Laser-optimised Bend-Insensitive OM4 50/125 Multimode Fibre Optic Cables

• LC to LC
• SC to LC

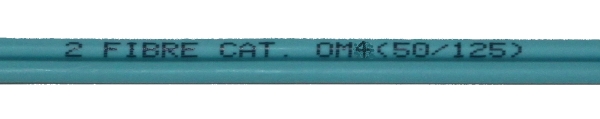

The fibre is a graded refractive index multimode fibre optimised for 10 Gb/s transmission speeds. It has a 50 micron core and a 125 micron cladding diameter. The fibre is designed for use at 850nm wavelength, but can also be used at 1300nm. Two 2.8mm tightly buffered fibres with a LSZH fire retardant, UV stabilised jacket to form a multipurpose zipcord. The Standard Jacket Colour is Blue but other colours are available on request.

This cable is Bend-Insensitive

Atenuation:
At 850nm: <=3.0dB/km(Typically 2.5)
At 1300nm: <=1.0dB/km(Typically 0.8)

Bandwidth
Effective Modal Bandwidth: >=4700MHz.km

• We have stocks of all of these connectors and can make up any length you require.
• Standard Fibre Colour is Blue and other colours may be available.
• We can label both ends Free of Charge
