Laser-optimised Bend-Insensitive OM3 50/125 Multimode Fibre Optic Cables




Complete Cables


Construction

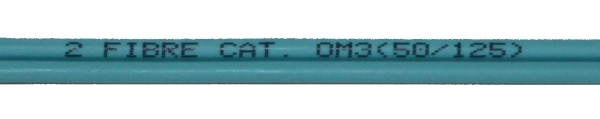

The fibre is a graded refractive index multimode fibre optimised for 10 Gb/s transmission speeds. It has a 50 micron core and a 125 micron cladding diameter. The fibre is designed for use at 850nm wavelength, but can also be used at 1300nm. Two 2.8mm tightly buffered fibres with a LSZH fire retardant, UV stabilised jacket to form a multipurpose zipcord. The Standard Jacket Colour is Aqua but other colours are available on request


This cable is Bend-Insensitive


Optical Properties

Atenuation:
At 850nm: <=3.0dB/km(Typically 2.5)
At 1300nm: <=1.0dB/km(Typically 0.7)


Bandwidth
Effective Modal Bandwidth: >=2000MHz.km


  • We have stocks of all of these connectors and can make up any length you require.
  • Standard Fibre Colour is Aqua and Red is also available.
  • We can label both ends Free of Charge
