Construction
The fibre is made of a high grade doped silica core surrounded by a silica cladding. They are coated with a dual layer
UV cured acrylate based coating.
This enhanced Single mode fibre provides improved performance across the entire 1260nm to 1625nm wavelength spectrum due to its
low attenuation in 1383nm, the water-peak region.

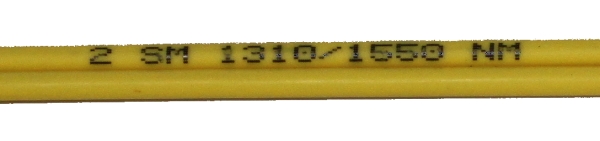

Two 2.8mm tightly buffered fibres with a LSZH fire retardant, UV stabilised jacket to form a multipurpose zipcord.
The Standard Jacket Colour is Yellow but other colours are available on request
Optical Properties
Atenuation:
1310nm - 1625nm: <=0.39dB/km
At 1550nm: <=0.25dB/km
- We have stocks of all of these connectors and can make up any length you require.
- Standard Fibre Colour is Yellow but Red and Green are also available.
- We can label both ends Free of Charge
