62.5/125 OM1 Multimode Fibre Optic Cables
The fibre is a graded refractive index multimode fibre suitable for transmission speeds up to 10 Gb/s. It has a 62.5 micron core diameter and a 125 micron cladding diameter designed for use at 850 and/or 1300nm wavelengths.

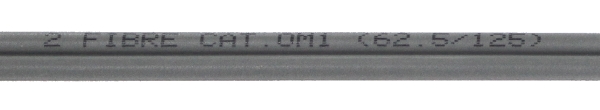

Two 2.8mm tightly buffered fibres with a LSZH fire retardant, UV stabilised jacket to form a multipurpose zipcord.
The standard jacket colour is Grey but other colours are available on request.
At 850nm: <=3.2dB/km
At 1300nm: <=1.0dB/km
At 850nm: >=200MHz.km
At 1300nm: >=600MHz.km
- We have stocks of all of these connectors and can make up any length you require.
- Standard Fibre Colour is Grey but other colours are also available.
- We can label both ends Free of Charge
